Products Description
1. Safe LiFePO4 Technology & Long Cycle Life
6000+ Cycles | Advanced BMS Protection
Built with high-safety lithium iron phosphate (LiFePO4) cells in a 1P16S configuration, this battery offers excellent thermal stability and reliable performance for residential energy storage. The integrated Battery Management System (BMS) provides essential battery protection, while a cycle life of over 6,000 cycles supports long-term energy storage applications, depending on operating conditions and depth of discharge (DoD).
2. High Capacity & Powerful Output
10.24kWh Capacity | 6.144kW Maximum Continuous Output
With a nominal voltage of 51.2V and a capacity of 10.24kWh, this battery delivers dependable energy storage for everyday household electricity needs. It supports a maximum continuous output power of 6.144kW and a maximum charging power of 5.376kW, making it suitable for compatible residential loads and solar energy storage systems.
3. Flexible Expansion & Easy Installation
Up to 15 Units in Parallel | Wall-Mounted or Floor-Standing
Designed for scalable energy storage, the battery supports up to 15 units in parallel, enabling total capacity expansion to 153.6kWh. Its flexible wall-mounted or floor-standing installation options make it suitable for residential homes, large villas, and selected small commercial energy storage applications. Professional installation is recommended due to its 90kg weight.
4. Smart BMS Communication & Wide Inverter Compatibility
RS485 / CAN / RS232 / Wi-Fi Communication
Equipped with multiple communication interfaces, including RS485, CAN, RS232, and Wi-Fi, the battery supports integration with compatible inverter systems. Communication firmware can be configured according to the selected inverter model to help ensure smooth system integration. Remote monitoring and battery status management are available with compatible communication setups.

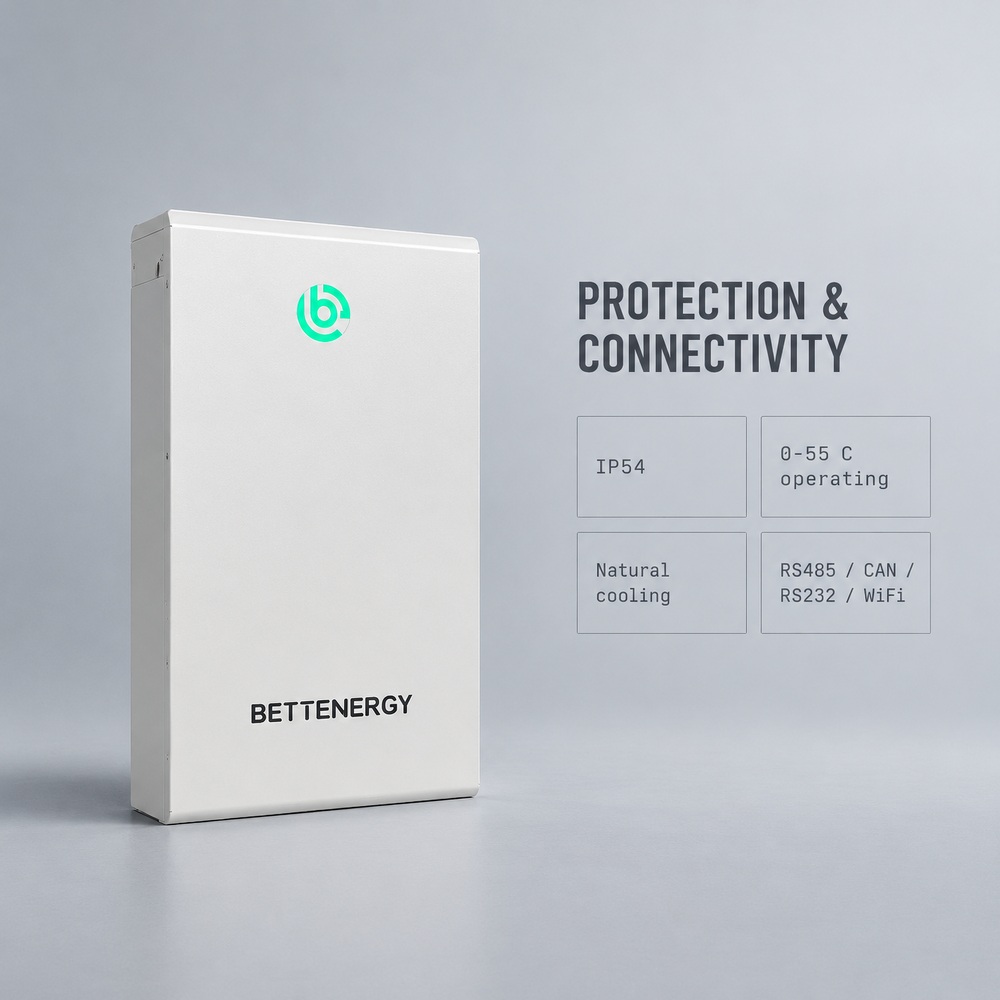

5. Natural Cooling & Reliable International Shipping Support
Natural Cooling | IP54 Protection | UN38.3 & MSDS Documentation
The natural cooling design helps reduce system complexity and routine maintenance requirements. With an IP54-rated enclosure, the battery is suitable for appropriately protected indoor environments and sheltered installation locations. Available documentation, including UN38.3 test reports, MSDS, and applicable transport documents, supports international shipping preparation. CE and IEC 62619 documentation can also be provided according to the product’s verified certification scope.
Product Parameters
| Model | ELESHELL -10.2Kplus |
| Battery Capacity(wh) | 10240 |
| Number of cells | 1P16S |
| Cell Type | LFP |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage Range (V) | 46.4~57.6 |
| Max .Charge /Discharge Current (A) | 105/120 |
| Continuous Charging/Discharging Current (A) | 100/110 |
| Max .Power（W） | 6144 |
| Max .charging power (W) | 5376 |
| Dimension (H*W*D mm) | 885*500*130 |
| Weight（KG） | 90 |
| Operating Temperature Range（℃） | 0-55 |
| Temperature Control | natural cooling |
| Max .Number of Parallel | 15 |
| Communication | RS485 /CAN /RS232 /WIFI |
| Ingress Protection Rating | IP54 |
| Installation | Wall mounting &floor mounting |
| Relative Humidity | ≤95%rh No condensation |
| Humid ity of storage environment | ≤95%rh No condensation |
| Max .Operating Altitude (m) | ≤3000m |
| Storage Temperature | ≤25℃，12 months；≤35℃，6 months；≤45℃，3 months |
| Certification | UN ,CE ,IEC62619 ,MSDS |
